This tutorial provides detailed, function-by-function guidance for the analytics module. Each section includes background, inputs and outputs, workflows, Python API examples, CLI examples, and practical notes.

Impedance over frequency

Physical background

Impedance varies with frequency due to inductive and capacitive effects. Frequency curves are used for comparing measurements and fitting the rho-f model.

Function overview

• impedance_over_frequency maps frequency to impedance magnitude.
• real_imag_over_frequency maps frequency to real and imaginary components.

Inputs and outputs

General workflow

1. Ensure impedance items have frequency_hz populated.
2. Query impedance or real/imag maps.
3. Compare curves across measurements.
4. Use the result for plotting or further modeling.

Python API examples

Scenario A: single measurement

from groundmeas.db import connect_db
from groundmeas.analytics import impedance_over_frequency

connect_db("groundmeas.db")

imp_map = impedance_over_frequency(1)
print(imp_map)

Scenario B: multiple measurements and real/imag

from groundmeas.db import connect_db
from groundmeas.analytics import real_imag_over_frequency

connect_db("groundmeas.db")

ri_map = real_imag_over_frequency([1, 2, 3])
print(ri_map[1])

CLI examples

Scenario A: single measurement

gm-cli impedance-over-frequency 1

Scenario B: multiple measurements

gm-cli real-imag-over-frequency 1 2 3 --json-out out.json

Additional notes

• Missing frequency_hz values are skipped.
• If impedance values are stored as real and imag, ensure the value field is populated or use the real/imag function.
• Use the Plotly dashboard for quick visual comparison.

Distance profile reduction

Physical background

Fall-of-Potential tests measure impedance versus distance between the voltage probe and the earthing system. As the probe moves away, the measured impedance approaches the "remote earth" value. In practice the curve can flatten slowly, show a shallow maximum, or contain noise from soil inhomogeneity, coupling, and probe placement. Reduction algorithms estimate one characteristic impedance from the distance series.

Inverse extrapolation formula (1/Z method):

At infinite distance (1/d -> 0), 1/Z approaches the intercept b, so the extrapolated impedance is Z_infinity = 1/b.

Function overview

• distance_profile_value reduces a distance profile to one value using several algorithms.

Inputs and outputs

General workflow

1. Verify impedance items have measurement_distance_m and value.
2. If multiple frequencies exist, filter to a single frequency first.
3. Choose a reduction algorithm that matches the test geometry and data quality.
4. Run the reduction and inspect result_distance_m and details.
5. Compare with other algorithms if needed.

Algorithm behavior in groundmeas

Maximum

The maximum method returns the measured point with the highest impedance value. It assumes the survey captured the true maximum of the distance curve. If the maximum was missed, the result will be too low. This can be a conservative choice when the maximum is clearly identified.

Implementation details: - Uses the single point with max(value). - details.point includes the chosen point.

62 percent (IEEE 80)

IEEE Std 80 describes a colinear arrangement of electrode, current probe, and potential probe in homogeneous soil. Under those assumptions, the potential contributions cancel at 62% of the current-probe distance, so Z at 0.62 * D is the earthing impedance.

Implementation details: - Requires distance_to_current_injection_m on the items. - Target distance = 0.62 * distance_to_current_injection_m. - Uses linear interpolation of the nearest distances (up to 3 points). - result_distance_m equals the target distance; details.used_points lists the interpolation points.

Minimum gradient

The minimum-gradient method finds the location where the slope dZ/dd is closest to zero. The idea is that a flat section of the curve indicates the remote-earth region, so the impedance at that distance is the characteristic value.

Implementation details: - Computes numerical gradients from the sorted distance series. - Picks the point with the smallest absolute gradient. - details.gradient records the gradient value at that point.

Minimum standard deviation

This method scans the curve with a fixed-size window and finds the segment with the smallest standard deviation. A stable segment indicates a flat, remote-earth region. The algorithm returns the maximum value within the best window to remain conservative while reducing sensitivity to single outliers.

Implementation details: - Uses window points per segment. - Picks the window with the lowest stddev(values). - Returns the maximum value inside that window. - details.window_points and details.stddev explain the chosen segment.

Inverse extrapolation (1/Z)

The inverse method fits a straight line to 1/Z versus 1/d and extrapolates to infinite distance. This is useful when the curve is still rising and remote earth is not clearly reached, but it can overestimate if the data range is short or noisy.

Implementation details: - Fits a line to x = 1/d and y = 1/Z. - Extrapolates to x = 0 to get y = b, then Z_infinity = 1/b. - Returns result_distance_m = inf to indicate extrapolation. - Requires non-zero distances and values.

Example curve (minimum standard deviation)

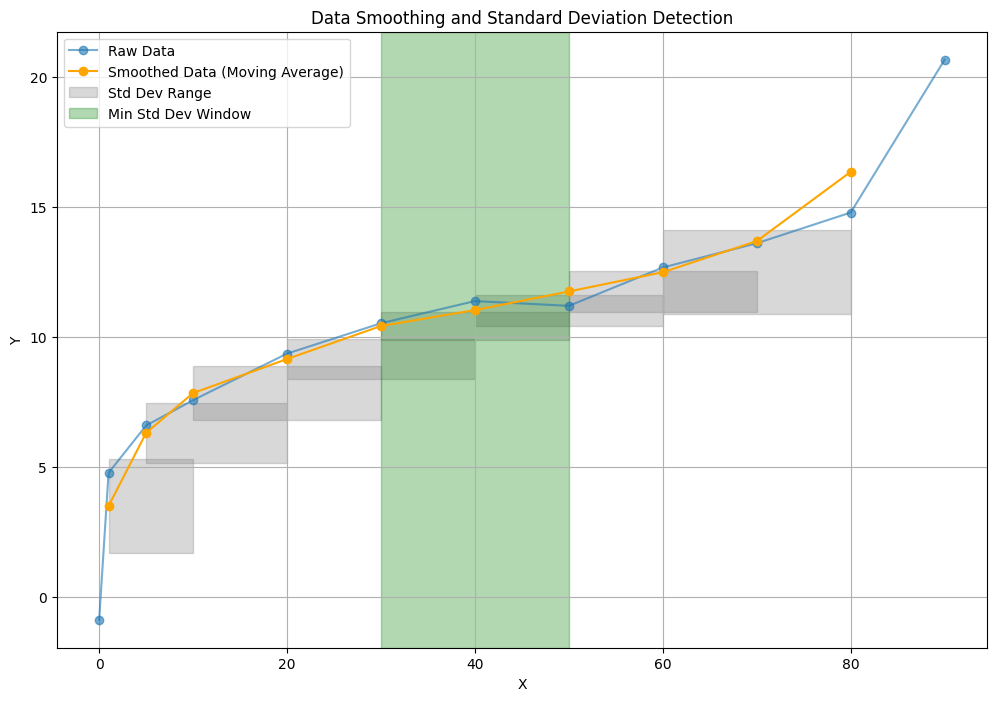

This plot shows the minimum standard deviation window used to select a stable region of the distance curve.

Choosing an algorithm

• Use 62% when the geometry matches IEEE 80 assumptions (colinear probes, homogeneous soil) and you have a reliable injection distance.
• Use minimum gradient when the curve flattens clearly and noise is low.
• Use minimum standard deviation when the curve is noisy but you expect a stable plateau; increase window to smooth more.
• Use maximum when you intentionally search for and confirm the peak in the curve.
• Use inverse when remote earth is not fully reached; treat it as an extrapolation that can be conservative.

Python API examples

Scenario A: maximum method

from groundmeas.db import connect_db
from groundmeas.analytics import distance_profile_value

connect_db("groundmeas.db")

result = distance_profile_value(1, algorithm="maximum")
print(result["result_value"], result["result_distance_m"])

Scenario B: 62 percent method

from groundmeas.db import connect_db
from groundmeas.analytics import distance_profile_value

connect_db("groundmeas.db")

result = distance_profile_value(1, algorithm="62_percent")
print(result)

Scenario C: minimum standard deviation with a larger window

from groundmeas.db import connect_db
from groundmeas.analytics import distance_profile_value

connect_db("groundmeas.db")

result = distance_profile_value(1, algorithm="minimum_stddev", window=5)
print(result["result_value"], result["details"]["stddev"])

CLI examples

Scenario A: minimum gradient

gm-cli distance-profile 1 --type earthing_impedance --algorithm minimum_gradient

Scenario B: inverse extrapolation

gm-cli distance-profile 1 --type earthing_impedance --algorithm inverse

Additional notes

• The 62 percent method requires consistent distance_to_current_injection_m values; mixed values trigger a warning and the first value is used.
• Duplicate distances are deduplicated by choosing the point closest to linear interpolation between neighbors.
• For inverse, distances and values must be non-zero.
• Results depend on distance coverage; short or sparse curves can bias any reduction.

Rho-f model fitting

Physical background

The rho-f model links impedance to soil resistivity and frequency. It uses complex coefficients fitted from data.

Function overview

• rho_f_model fits k1 to k5 from impedance and soil resistivity data.

Inputs and outputs

General workflow

1. Ensure impedance data and soil resistivity data overlap in frequency.
2. Call the fit function with one or more measurements.
3. Validate coefficients by plotting model curves.

Python API examples

Scenario A: single measurement

from groundmeas.db import connect_db
from groundmeas.analytics import rho_f_model

connect_db("groundmeas.db")

k1, k2, k3, k4, k5 = rho_f_model([1])
print(k1, k2, k3, k4, k5)

Scenario B: combined fit

from groundmeas.db import connect_db
from groundmeas.analytics import rho_f_model

connect_db("groundmeas.db")

coeffs = rho_f_model([1, 2, 3])
print(coeffs)

CLI examples

Scenario A: one measurement

gm-cli rho-f-model 1

Scenario B: multiple measurements

gm-cli rho-f-model 1 2 3 --json-out rho_f.json

Additional notes

• The fit requires real and imag impedance values plus soil resistivity values.
• If frequencies do not overlap, the fit may fail or return poor coefficients.
• Use plot-rho-f-model to inspect the fit visually.

Voltage, touch voltage, and EPR

Physical background

Earth Potential Rise follows impedance and current.

Function overview

• voltage_vt_epr computes EPR and touch voltage summaries per measurement.

Inputs and outputs

General workflow

1. Ensure impedance and current items share the same frequency.
2. Call the function with one or more measurements.
3. Inspect EPR and voltage ranges.

Python API examples

Scenario A: single measurement

from groundmeas.db import connect_db
from groundmeas.analytics import voltage_vt_epr

connect_db("groundmeas.db")

summary = voltage_vt_epr(1, frequency=50.0)
print(summary)

Scenario B: multiple measurements

from groundmeas.db import connect_db
from groundmeas.analytics import voltage_vt_epr

connect_db("groundmeas.db")

summary = voltage_vt_epr([1, 2], frequency=50.0)
print(summary)

CLI examples

Scenario A: one measurement

gm-cli voltage-vt-epr 1 --frequency 50

Scenario B: multiple measurements

gm-cli voltage-vt-epr 1 2 --frequency 50 --json-out vt.json

Additional notes

• If current or impedance data is missing, outputs will be incomplete.
• Use consistent units for current and impedance values.

Shield currents and split factor

Physical background

Earth fault current can split between cable shields and the local earthing system. The split factor quantifies that ratio.

Function overview

• shield_currents_for_location lists shield current items for a location.
• calculate_split_factor computes the split factor and derived currents.

Inputs and outputs

General workflow

1. Identify a location and available shield current items.
2. Select the earth fault current item.
3. Compute the split factor using selected shield currents.

Python API examples

Scenario A: list shield currents

from groundmeas.db import connect_db
from groundmeas.analytics import shield_currents_for_location

connect_db("groundmeas.db")

shield_items = shield_currents_for_location(location_id=1, frequency_hz=50.0)
print(shield_items)

Scenario B: compute split factor

from groundmeas.db import connect_db
from groundmeas.analytics import calculate_split_factor

connect_db("groundmeas.db")

result = calculate_split_factor(
    earth_fault_current_id=100,
    shield_current_ids=[201, 202],
)
print(result)

CLI examples

Scenario A: list shield currents

gm-cli shield-currents 1 --frequency 50

Scenario B: split factor

gm-cli calculate-split-factor --earth-fault-id 100 --shield-id 201 --shield-id 202

Additional notes

• Use consistent reference direction and frequency across shield current items.
• Mixed polar and rectangular values are supported, but avoid mixing units.

Value over distance mappings

Physical background

Not applicable. These functions provide distance-based mappings for plotting and QA.

Function overview

• value_over_distance returns a simple distance to value map.
• value_over_distance_detailed returns distance, value, and frequency points.

Inputs and outputs

General workflow

1. Filter by measurement type (impedance, resistance, soil resistivity).
2. Use the simple map for quick plots or checks.
3. Use the detailed map when frequency separation matters.

Python API examples

Scenario A: simple map

from groundmeas.db import connect_db
from groundmeas.analytics import value_over_distance

connect_db("groundmeas.db")

dist_map = value_over_distance(1, measurement_type="earthing_impedance")
print(dist_map)

Scenario B: detailed map

from groundmeas.db import connect_db
from groundmeas.analytics import value_over_distance_detailed

connect_db("groundmeas.db")

points = value_over_distance_detailed([1, 2], measurement_type="earthing_impedance")
print(points[1][:3])

CLI examples

Scenario A: export and inspect

gm-cli export-json out.json --measurement-id 1

Scenario B: list items for a specific type

gm-cli list-items 1 --type earthing_impedance

Additional notes

• There is no direct CLI command for these functions; use export or list-items for equivalent data.
• Missing measurement_distance_m values are ignored.

Soil resistivity profiles

Physical background

Wenner and Schlumberger arrays estimate apparent resistivity from field measurements.

Wenner:

Schlumberger:

Function overview

• soil_resistivity_profile_detailed returns depth and spacing detail.
• soil_resistivity_profile returns depth to resistivity map.
• soil_resistivity_curve returns spacing to resistivity points.

Inputs and outputs

General workflow

1. Store soil resistivity or resistance values with spacing.
2. Choose Wenner or Schlumberger method.
3. Build a depth profile for QA.
4. Use the spacing curve for inversion.

Python API examples

Scenario A: Wenner resistivity values

from groundmeas.db import connect_db
from groundmeas.analytics import soil_resistivity_profile

connect_db("groundmeas.db")

profile = soil_resistivity_profile(2, method="wenner")
print(profile)

Scenario B: Schlumberger resistance values

from groundmeas.db import connect_db
from groundmeas.analytics import soil_resistivity_profile_detailed

connect_db("groundmeas.db")

profile = soil_resistivity_profile_detailed(
    measurement_id=3,
    method="schlumberger",
    value_kind="resistance",
    ab_is_full=False,
    mn_is_full=False,
)
print(profile[:3])

CLI examples

Scenario A: Wenner profile

gm-cli soil-profile 2 --method wenner

Scenario B: Schlumberger profile with resistance values

gm-cli soil-profile 3 --method schlumberger --value-kind resistance

Additional notes

• By default, Schlumberger spacing uses AB/2 and MN/2. Set ab_is_full or mn_is_full if you store full spacings.
• If units are missing, value_kind=auto assumes resistance.

Layered earth model and inversion

Physical background

Layered earth models approximate soil resistivity changes with depth. Apparent resistivity curves are simulated with digital filters or an integral engine.

Function overview

• LayeredEarthModel validates layer resistivities and thicknesses.
• multilayer_soil_model builds a layer table for reporting.
• layered_earth_forward simulates apparent resistivity for Wenner or Schlumberger.
• invert_layered_earth inverts spacing and apparent resistivity arrays.
• invert_soil_resistivity_layers inverts directly from stored soil items.

Inputs and outputs

General workflow

1. Choose 1 to 3 layers based on curve complexity.
2. Set initial resistivities and thicknesses.
3. Simulate the curve to sanity check the model.
4. Run inversion and inspect misfit.
5. Increase layer count only if needed.

Python API examples

Scenario A: forward simulation

from groundmeas.analytics import layered_earth_forward

spacings = [1.0, 2.0, 4.0, 8.0]
resistivities = [100.0, 30.0]
thicknesses = [2.0]

pred = layered_earth_forward(
    spacings_m=spacings,
    rho_layers=resistivities,
    thicknesses_m=thicknesses,
    method="wenner",
)
print(pred)

Scenario B: inversion from stored survey

from groundmeas.db import connect_db
from groundmeas.analytics import invert_soil_resistivity_layers

connect_db("groundmeas.db")

inv = invert_soil_resistivity_layers(
    measurement_id=2,
    method="wenner",
    layers=2,
    initial_rho=[120.0, 35.0],
    initial_thicknesses=[2.5],
    max_iter=40,
    damping=0.1,
)
print(inv["rho_layers"], inv["thicknesses_m"], inv["misfit"])

CLI examples

Scenario A: simulate a model

gm-cli soil-model --rho 100 --rho 30 --thickness 2 \
  --method wenner --spacing 1 --spacing 2 --spacing 4

Scenario B: invert a model

gm-cli soil-inversion 2 --layers 2 --method wenner \
  --initial-rho 120 --initial-rho 35 \
  --initial-thickness 2.5

Additional notes

• The filter forward engine assumes MN is small compared to AB for Schlumberger.
• Use forward=integral when MN is not negligible (requires SciPy).
• Inversion can be sensitive to initial guesses; start with 1 layer and add complexity gradually.
• Use backend="mlx" on Apple hardware if MLX is installed for speed.
